Cleaning Process
The pressure differential is manually monitored via the inlet and outlet manometers. An increase in pressure indicates the eed for cleaning. To begin, shut off the water supply and depressurize the system. Then, remove the cover and extract the filter cartridge.
The cartridge's retaining screw must be loosened to separate the discs for a thorough cleaning with pressurized water. After cleaning, the filter is reassembled and ready for service.
Working Principle
Water enters the filter and passes through the filtration element (a fine screen). During operation, contaminants gradually accumulate on the surface of this element—the inner surface for screens. This buildup obstructs the water flow, creating a pressure differential between the filter’s inlet and outlet. Manual cleaning is required when this pressure differential reaches 0.7 bar.
Aytok Mini Series – Screen Filters
ADVANTAGES
Maximum Performance. Minimal Space.
Designed for efficiency in tight spaces, Aytok MPE filters provide a robust and versatile solution for low-flow water systems. They are perfectly suited for applications like garden irrigation, fertigation, and protecting small-scale cooling equipment.
GENERAL FEATURES
MPE
| Body Material | PP |
| Cartridge Material | SS304L, PP |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Filtration Sensitivity | 80, 100, 130, 200 μ (micron) |

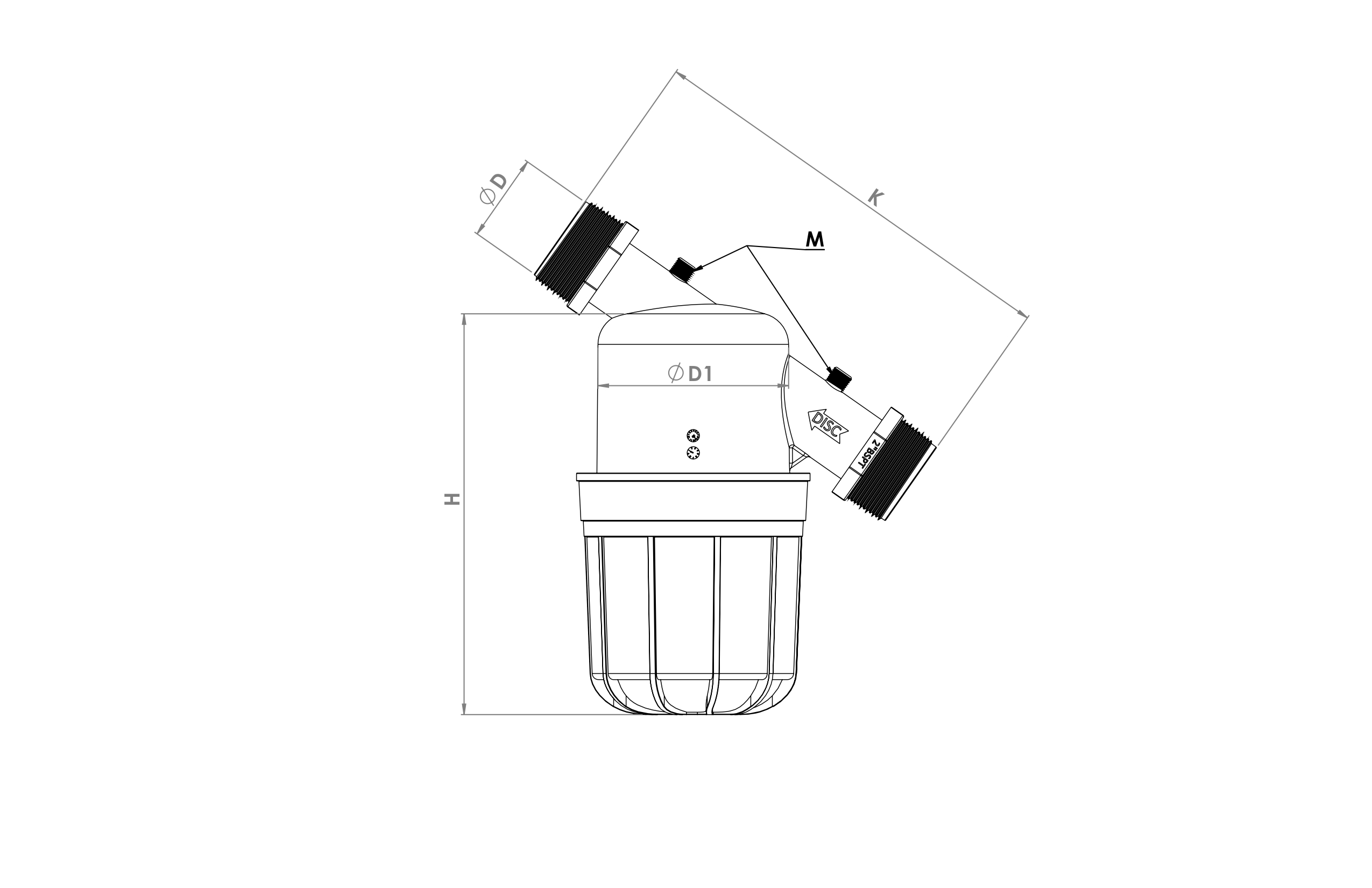

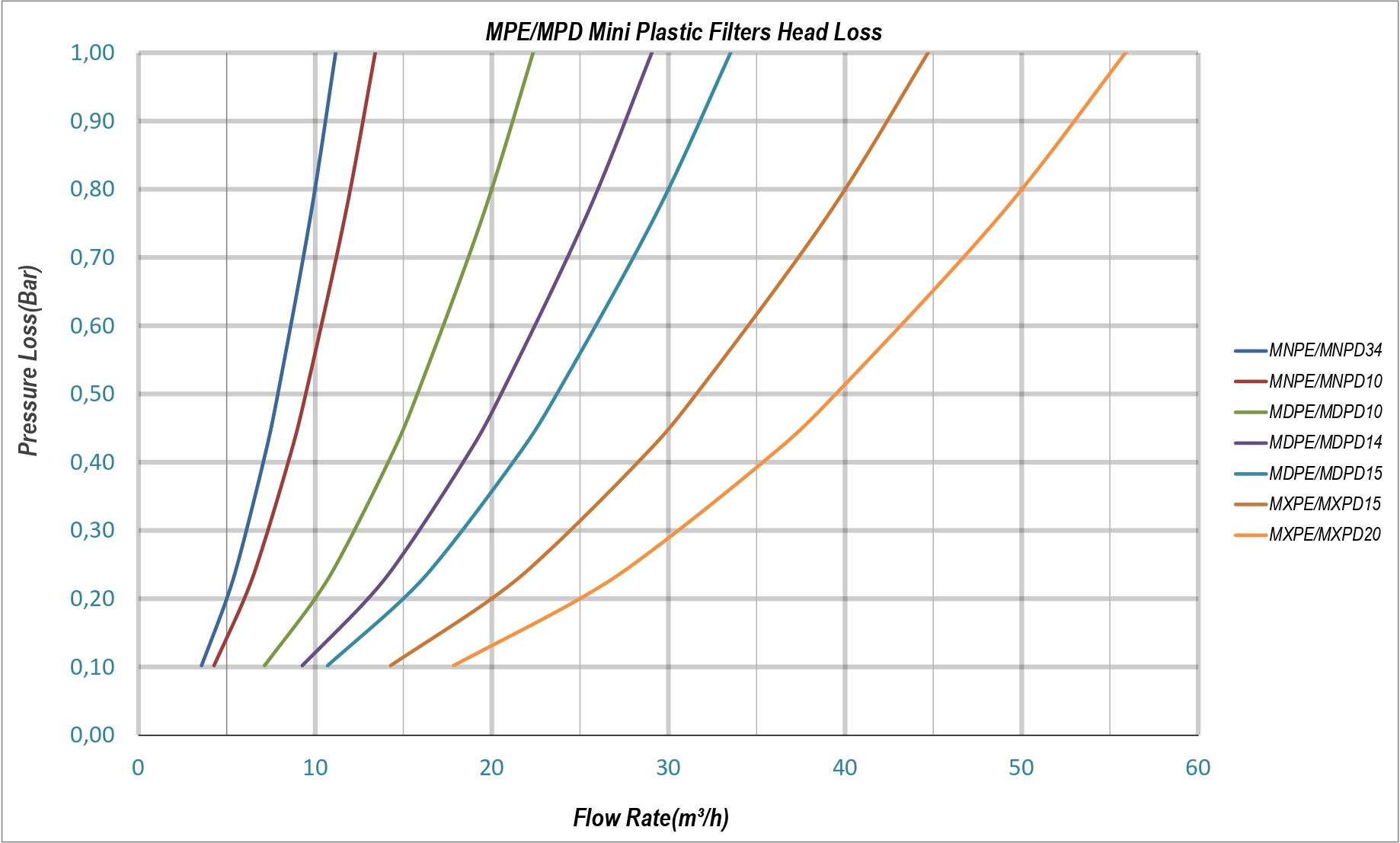

| CODE | D | M | T | D1 | H | K | Flow Rate | Filtration Area cm² |
Weight kg |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | Inch | Inch | mm | mm | mm | m³/h | GPM(US) | |||
| MNPE34 | 3/4 | 20 | - | 3/4 | 68 | 190 | 160 | 5 | 22 | 165 | 0,3 |
| MNPE10 | 1 | 25 | - | 3/4 | 68 | 190 | 160 | 6 | 26,4 | 165 | 0,3 |
| MDPE10 | 1 | 25 | - | 3/4 | 96 | 230 | 220 | 10 | 44 | 300 | 0,75 |
| MDPE14 | 1 1/4 | 32 | - | 3/4 | 96 | 230 | 220 | 13 | 66 | 300 | 0,75 |
| MDPE15 | 1 1/2 | 40 | - | 3/4 | 96 | 230 | 220 | 15 | 66 | 300 | 0,75 |
| MXPE15 | 1 1/2 | 40 | 1/4 | 3/4 | 120 | 280 | 270 | 20 | 88 | 515 | 1,2 |
| MXPE20 | 2 | 50 | 1/4 | 3/4 | 120 | 280 | 270 | 25 | 110 | 515 | 1,2 |
